Genitec We are PCB separator expert. We provide PCB depaneling total solution.
Genitec founded in Taiwan in 1993. We have two factories for over 20000 square meters.
We produce most kind of PCB separator. Including PCB router, laser PCB separator, V-cut,
PCB/FPC punching machine.
If you have any project about PCB depaneling, welcome your inquiry, we will provide you solution.
PCB Router Machine Descriptions
1. Adopt imported high-speed spindle with small cutting stress and high precision quality.
2. Equipped with ‘upper dust collector’.Has powerful capability of absorbing dust from the upper side.
3. GAM310A has single worktable and it requires only small space.It's high flexibility in use.
4. Equipped with high-speed CCD auto vision calibration system to have efficiency in recognition capability.
5. Windows10 Operation system is easy to operate.
PCB Router Machine Features
| Operation |
Operation interface is clear,friendly,and simple.Easy to learn and start quickly.
Functional items are clear and well categorized.
Very easy to set the parameter for milling tool and fixture.
Provide four levels of authorization control according to user’s job rank.
The ‘History’ can display the historical records of operation. |
| Milling Tool Detection | Provide capability to detecting broken/dropped/reversed milling tool for auto-change. |
| Vision-Aided Position Calibration |
Use computer vision with high-quality CCD to automatically position the mark points
and enhance the accuracy of cutting.
Can edit the path-planning program and simulate the cutting path to avoid wrong cutting.
|

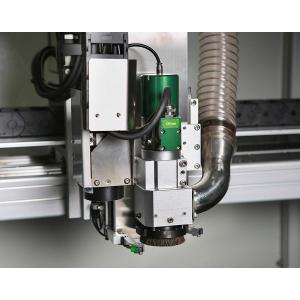

| Spindle |
High-speed precision spindle (60,000RPM).
Patented “flexible cleaning brush module”enables the milling tool move to its deeper
positions and prolong the life-cycle of the tool.
|
| The Whole PCB Scanning Function Editing Cutter’s Routing Path | The function of scanning the whole PCB allows the user to facilitate correcting
and editing the cutter’s routing path rapidly. |
| Dust Collection Mechanism | Equipped with high efficient “upper dust collector” |
PCB Router Machine Specifications
| ITEM | GAM310A |
| Valid Cutting Area | 350*300mm |
| Cutting Function | Tweening to Line,L-Shape,U-shape,Circle,Arc |
| Process Table | Single table |
| Repeat Precision | ±0.01mm |
| Cutting Precision | ±0.05mm |
| Max.Moving Speed | XY:1000mm/sec,Z:500mm/sec |
| Max.Moving Trip | X:450mm,Y:480mm,Z:90mm |
| Spindle Speed | MAX60,000rpm |
| Tool Change Method | Yes |
| Security Protect | Safty Light Curtain |
| Cutting Speed | 1-100mm/s(Adjustable) |
| Operation System | Windows10 |
| Program Teaching Mode | Intuitive Teaching by CCD Color Image Input |
| Program Backup | USB |
| Control Method | Precision Multi-axis Control System |
| XYZ-axis Driving Mode | AC Servo Motor |
| Size of Milling Bit | φ0.8-3.0mm |
| Machine Size | 1120(W)*1208(D)*1914(H)(mm) |
| Machine Weight | 400KG |
