Genitec We are PCB separator expert. We provide PCB depaneling total solution.
Genitec founded in Taiwan in 1993. We have two factories for over 20000 square meters.
We produce most kind of PCB separator. Including PCB router, laser PCB separator, V-cut,
PCB/FPC punching machine.
If you have any project about PCB depaneling, welcome your inquiry, we will provide you solution.
PCB Depaneling Machine Features
1. Flexible to apply single transfer, then to meet the process connection demand of forward and back.
2. It can be setting between 0-180 degree on taking and placing PCB.
3. All the process are under automatic operation, which are including loading, cutting,
replacing of milling tool, unloading and the waste collecting.
3 options of unloading of products, contains conveyor, fixture.
4. Use CCD to do the vision positioning off-set and alignment which can ensure the cutting precision.

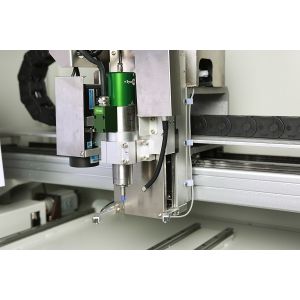

5. Assemble with high speed ESD spindle for function of auto tool change,
spindle can release the static caused during production, then can reduce the PCB damage possibility caused via static.
6. The patent flexible brush structure is able to do the deepen function for extend milling tool's life cycle.
7. Assemble with high absorption power of dust collector, contains negative pressure detection
which will remind user to clean the filter bags.
8. Windows10 operation system.Software to be designed by ourselves then can upgrade it continuously.
PCB Depaneling Machine Application
1. Suitable to be used on the panelization PCBA routing process of mobile, wearable device, PC etc.
2. Various unloading options of track, fixture on carrier, tray, those are according to process way to choose.
| ITEMS | PCB Depaneling Machine GAM336AT |
| Valid Cutting Area | 350*300mm |
| Loading Method | Track Delivery |
| Unloading Method | Conveyor Belt or Track Delivery(Optional) |
| Transfer Method | Vacuum Nozzle Absorption |
| Movement Direction | Left to Right Or Right to Left |
| Cutting Function | Tweening to Line,L-shape,U- shape,Circle,Arc |
| Process Table | Dual Tables |
| Repeat Precision | ±0.01mm |
| Cutting Precision | ≦±0.05mm |
| Max.Moving Speed | XY:1000mm/sec Z:500mm/sec |
| Spindle Speed | MAX.60000rpm |
| Tool Chang Method | Automatic |
| Cutting Speed | 1-100mm/s |
| Operation System | Windows10 |
| Program Teaching Method | Intuitive Teaching by CCD Color Image Input |
| Control Method | Precision Multi-axis Control System |
| XYZ-Axis Driving Mode | AC Servo Motor |
| Size of Millng Bit | ∮0.8~3.0mm |
| Voltage | AC220V,1phase,50/60HZ,4KW |
| Pneumatic Pressure Requirement | 0.6Mpa,160L/min |
| Machine Dimensions (W*D*H) | 1706*1918*1750mm |
| Machine Weight | 800KG |
| Dust Collector | TS300L |
